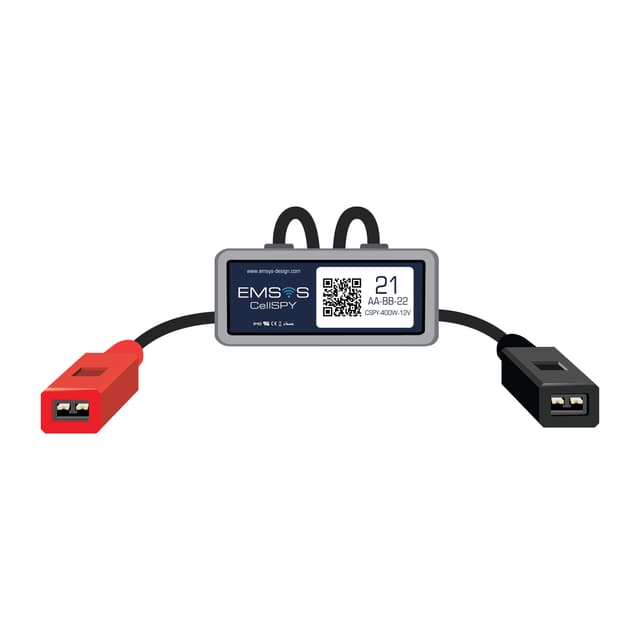

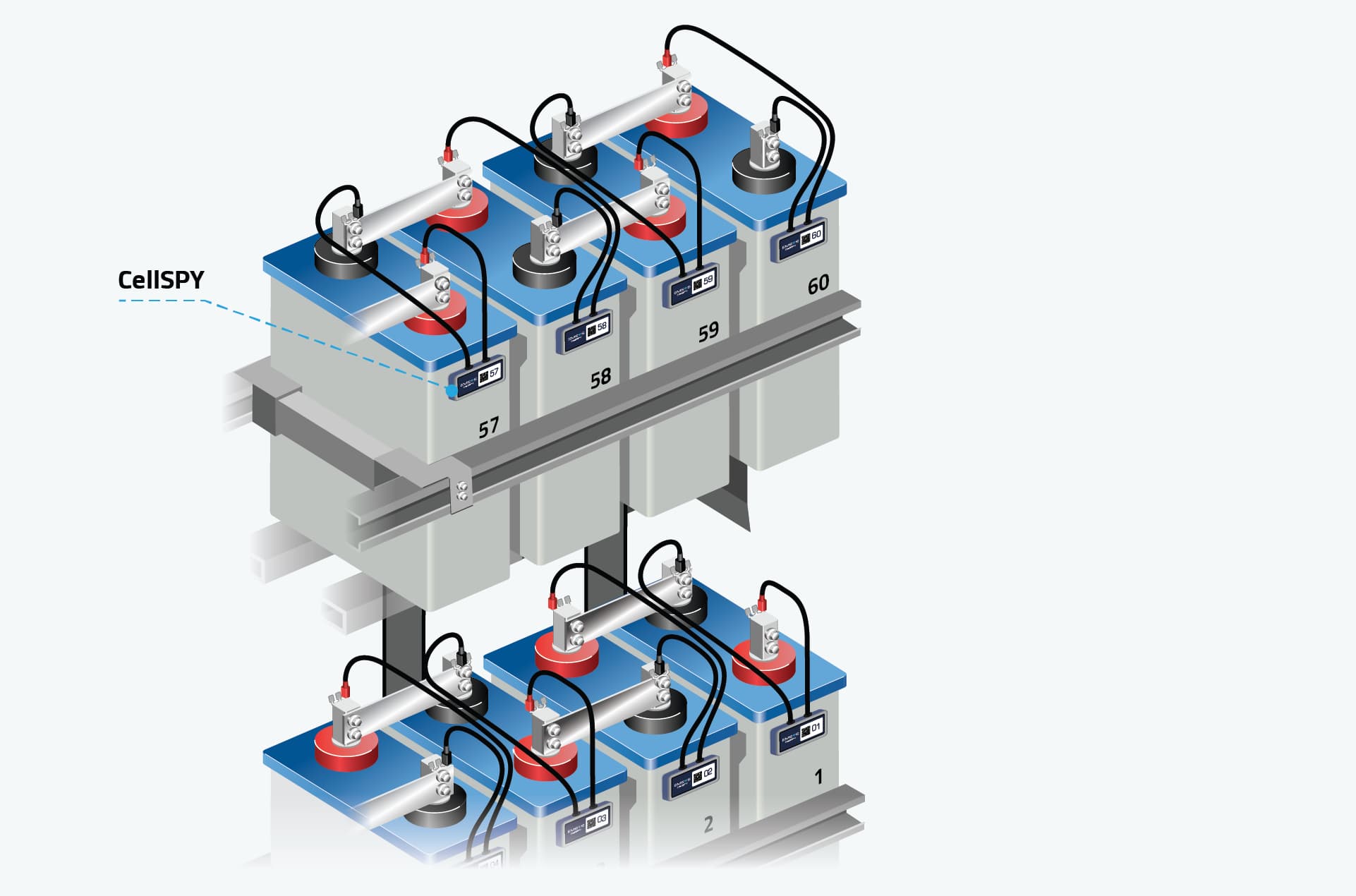

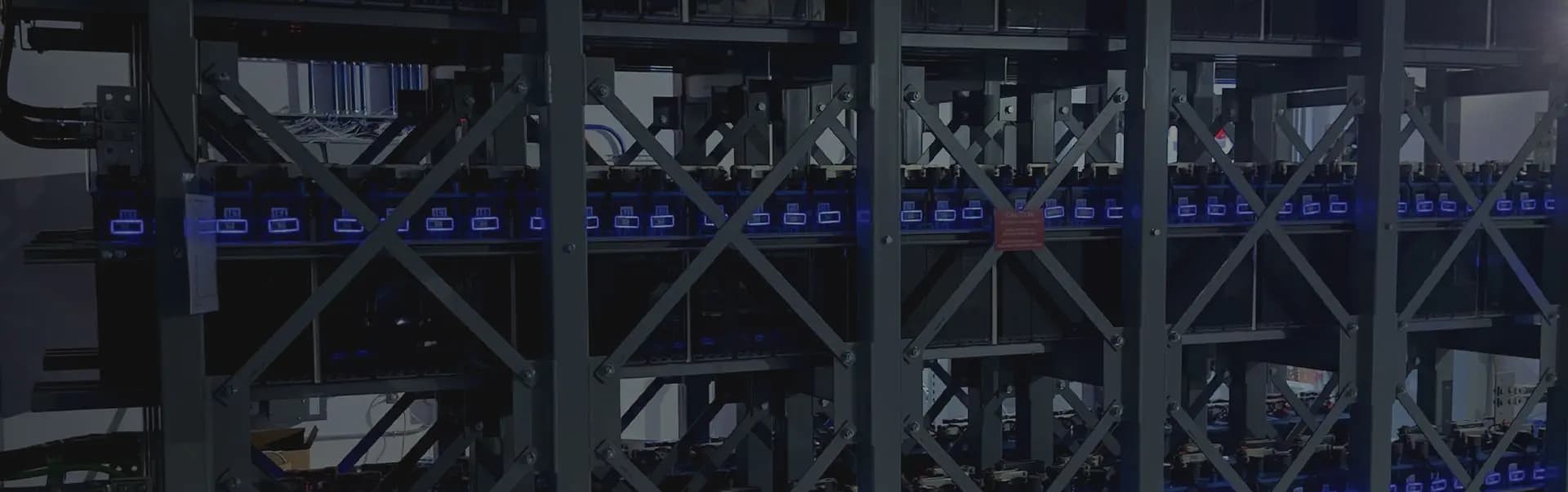

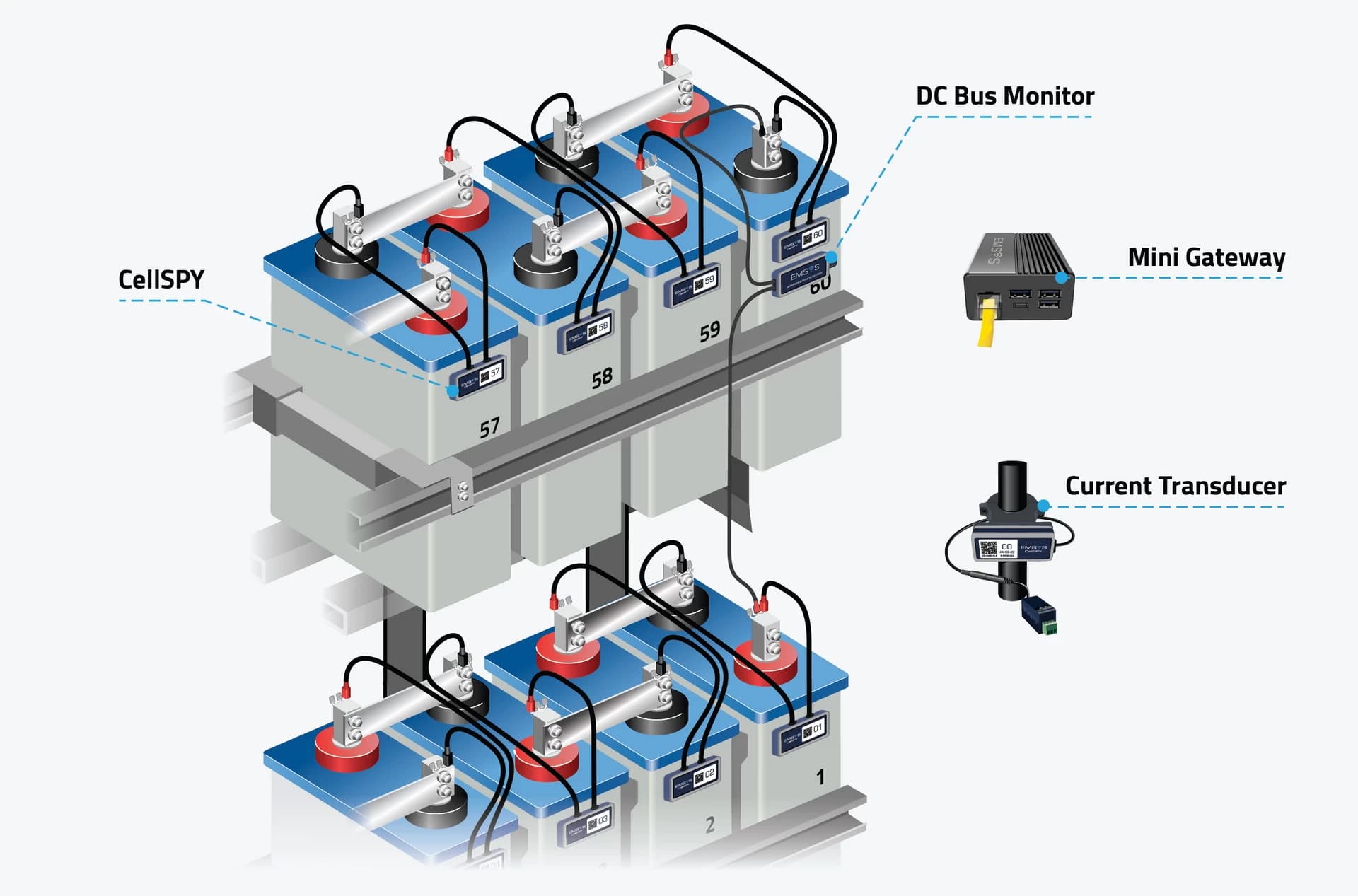

Battery Monitoring

Designed to measure and continuously report the following parameters:

DC voltage across the battery terminals
AC ripple voltage across the battery terminals
Battery’s ohmic value
Temperature at negative battery post

There are four standard sensor types for the four different nominal voltages:

CSPY-400-1.2V
CSPY-400-2V
CSPY-400-12V
CSPY-400-16V

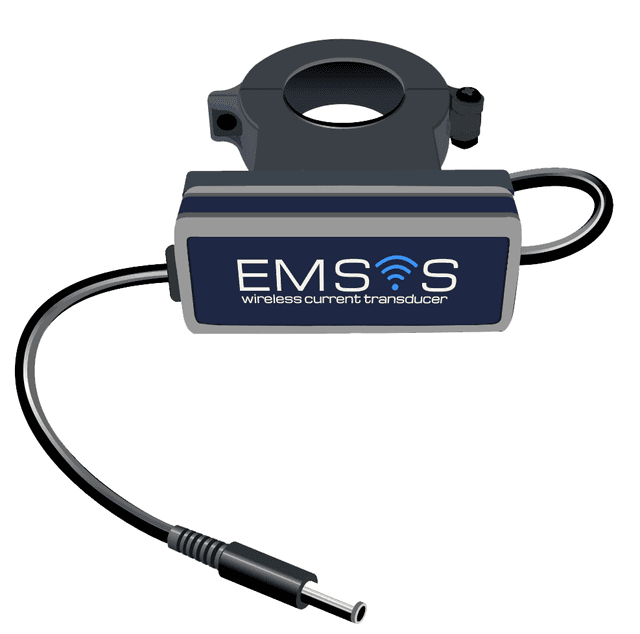

DC current measurement

Thanks to its Dual-Core Technology, the Wireless Current Transducer measures DC current of 1 A or 800 A with the same high accuracy. It uses field proven Hall Effect based circuitry to provide a superior solution for DC applications, with minimal risk of permanent magnetization.

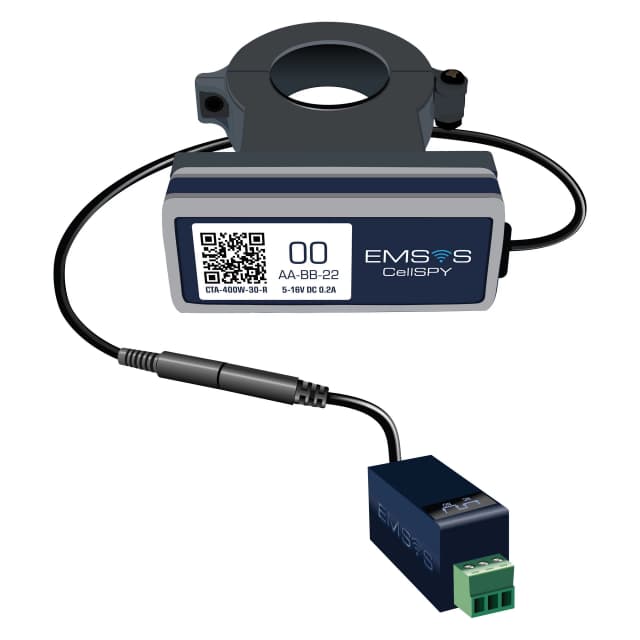

Ambient temperature measurement

Ambient temperature measurement is useful in detecting faulty air conditioning or improper ventilation. Our WCTA can be used in conjunction with our CellSPY battery monitors to detect a thermal runaway in its earliest stages.

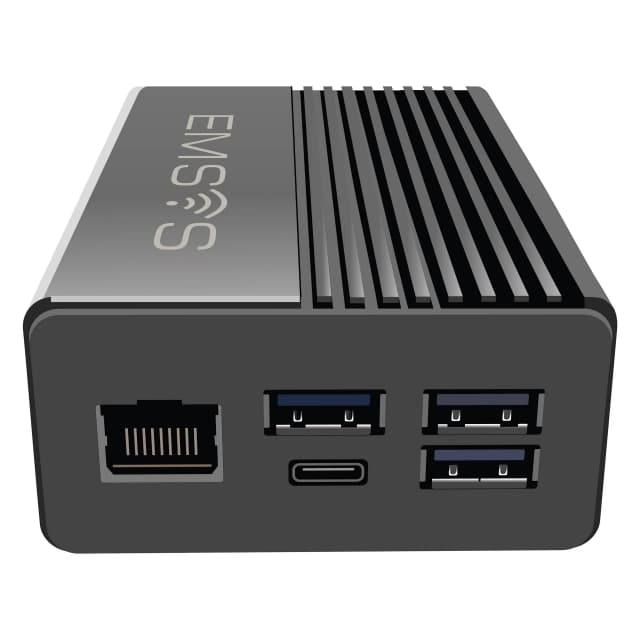

EMSYS Mini Gateway (SRV-1200) is primarily designed to serve smaller and remote sites as a Wireless to IP and IP to Wireless bridge. It is also an application server which means that it allows direct access to the collected data through a variety of interfaces.

ModbusTCP, ModbusRTU and SNMP are a few examples of industry standard protocols supported by EMSYS Mini Gateway.
